Cell Classification

Cell subclass was characterized by expression of a transgenic reporter(mouse) as well as by morphological properties (mouse and human). Cells were assigned to a target layer during the experiment followed by an annotated cortical layer during morphological analysis.

‍

Transgenic Classification

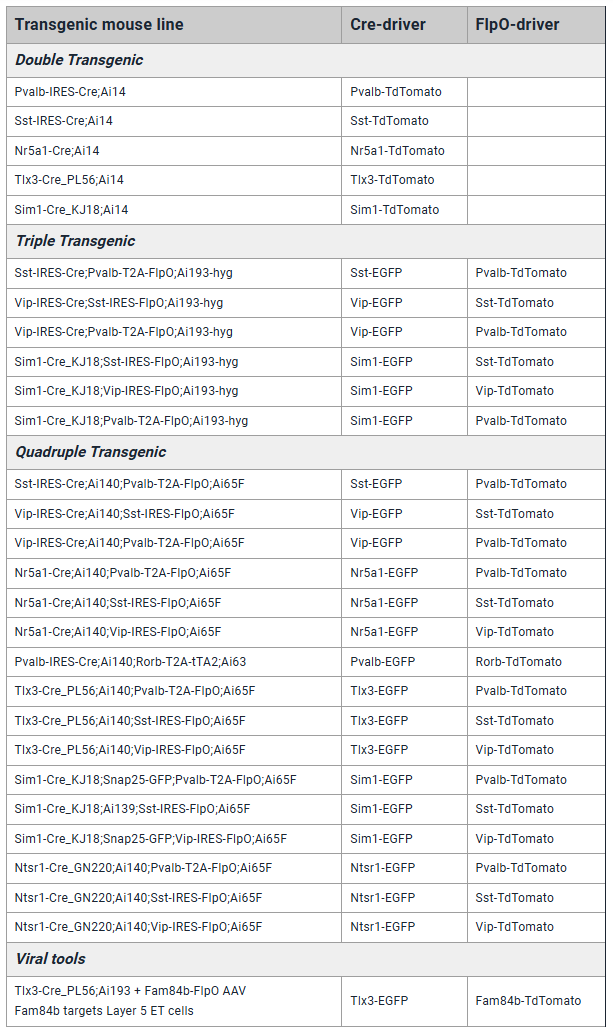

Double, triple, and quadruple transgenic mice were used to label subclasses of excitatory and inhibitory cells. In triple and quadrupletransgenics, two distinct subclasses could be labeled with different reporters(typically TdTomato and EGFP). See the Transgenic Characterization for a complete description of the transgenic drivers and reporters.

‍

Morphological Classification

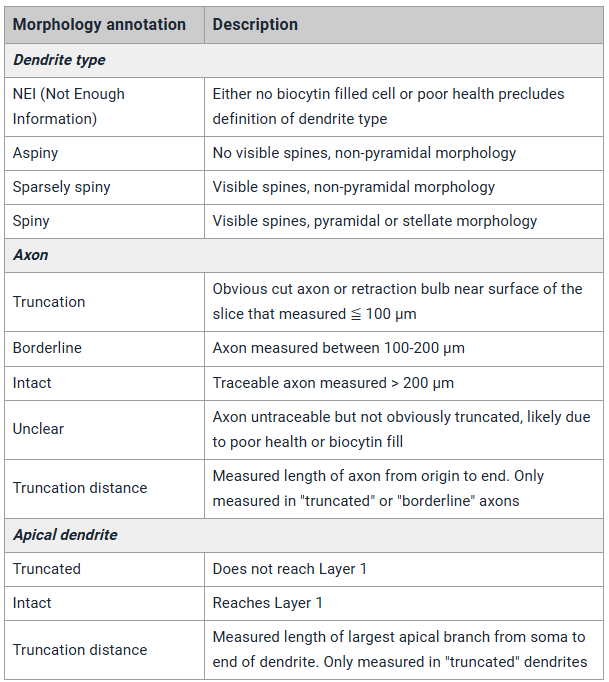

Biocytin filled cells were imaged at 63x magnification to measure morphological features such as spiny-ness, soma shape, and axon and dendritic length. More than 3000 mouse cells and 700 human cells received morphological analysis.

‍

Layer Annotation

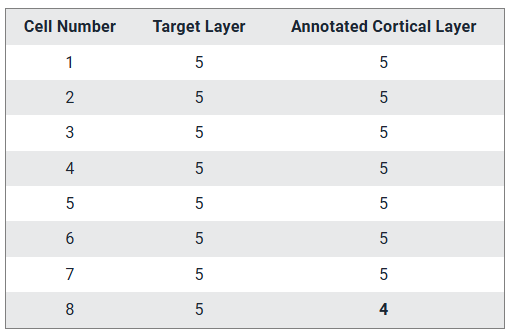

During the experiment we assigned a target layer to each cell as well as recorded the relative position of the cell within the slice. These cell positions were then mapped onto the biocytin and DAPI stained slice. When both annotated cortical layers, and cell positions were labeled on a slice these cells automatically received a "cortical layer" based on where the center of a cell was in relation to layer boundaries. We were able to assign cortical layers to more than 9000 mouse cells and 1400 human cells. Cells could be assigned a cortical layer even in the absence of biocytin as long as the position of the cells was recorded during the experiment.

‍
