Brain Explorer® 3-D Viewer is an application for viewing brain anatomy and gene expression data in three dimensions in the framework of the Allen Developing Mouse Brain Reference Atlas.
Using Brain Explorer, you can:
Note: Brain Explorer is known to work with the following video chipsets: nVidia GeForce 9400/9600, nVidia Quadro FX 1800/3800/5600, AMD Radeon 9600, AMD Radeon HD 3200/4550, Intel Q35/Q45 Express.
For the best performance, please check with your video card vendor for the latest available drivers before using Brain Explorer. The Windows version of the Brain Explorer viewer is available here. Double-click the downloaded BrainExplorer2.msi file and follow the prompts.
Note: Please install the latest system updates from Apple to ensure you have the latest video card drivers.
The Mac version of the Brain Explorer viewer is available here. Double-click the downloaded zip file to unpack Brain Explorer.
A one-time download containing anatomy files is needed following installation of the Brain Explorer application. The first time you open the Brain Explorer software, you will be asked to choose to download files for the Allen Mouse and Allen Human Brain atlases. Click on the atlases you would like to use and then click the Install button.
To download missing atlases on the PC, go to the Help menu and select Download Atlases. On the Mac, the command is in the Brain Explorer 2 menu.
The Brain Explorer application will inform you when updates to the Brain Explorer application itself or its atlases are available. New data may not be available for viewing until you install the required updates.
To load gene expression data into the Brain Explorer viewer: go to the Allen Developing Mouse Brain Atlas and perform a search. Your search brings back a list of genes that fit your search criteria. Click on a gene name to select a gene of interest. 3-D thumbnails at all developmental stages of the gene expression pattern from that gene will load to the right. Click on the blue “View in 3D” link to launch the Brain Explorer application and load each experiment.

When the Brain Explorer 3-D Viewer opens, you will be taken to a screen that displays the Image Viewer, the Structure Ontology Viewer, and the Gene List.

The Image Viewer will display the gene expression representations in 3-D for your gene of interest across all stages. Each stage will default to separate color schemes for each developing stage. For each developing stage, a sphere represents expression re-sampled to a grid resolution that is dependent on the stage in question (see the Informatics Data Processing whitepaper available in the Documentation. Larger spheres correspond to a greater density of expression in that voxel.
You can filter the developmental stages by hovering your mouse over the age to bring up an “X” or a magnifying glass. Clicking on the “X” will close that experiment, clicking on the magnifying glass will remove all the other stages from the viewer.

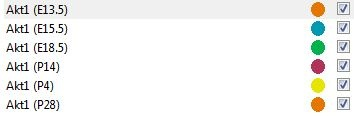

You can select a sphere by clicking on it. Spheres can be deselected by clicking on blank space. The original ISH image of the selected sphere will be displayed blended with the expression heat mask in the lower left-hand portion of the screen. The blending can be adjusted by selecting Image Controls from the View menu and moving the Image Blending slider. Clicking on the arrow in the top right-hand corner of the zoomed ISH image will open the corresponding ISH image in a high resolution image viewer.
The information at the upper-left corner of the main Brain Explorer window summarizes the expression detected in the selected grid location. These numbers include the average expression density and intensity (over pixels). The Informatics Data Processing White Paper describes how the measurements were obtained.
To change the gene expression representation, click on the “Data” menu and select an option under “Raw” colors.
A compass in the right-hand corner of the Image Viewer can be used to rotate the brain(s) by clicking and dragging your cursor. You can zoom using either the wheel on your mouse or using the Zoom scrollbar in the lower right-hand corner of the Image Viewer.
A way to control expression visibility is by setting thresholds on expression values. This method can restrict visible spheres to different combinations such as low intensity and low density or high intensity and low density.

The graph in the lower right-hand corner shows a dot for each data point (sphere) in a gene expression file, and the color of the dot corresponds to the anatomic annotation in the same way the atlas colors display mode works. Each data point is plotted according to its density on the x-axis and its intensity on the y-axis.
The color scale on the left-hand side of the graph corresponds to the expression level heat map used to color the spheres, color coded to the reference atlas structures. The numbers along each axis show the values at the yellow triangles.
The thresholds can be changed by resizing the white box. Any edge or corner of the box can be clicked and dragged to re-size it. You can also click and drag in the center of the box to move the box.
The Structure Ontology Viewer shows the entire collapsible ontology for the developing mouse brain as defined by the Allen Developing Mouse Reference Atlas. The first column represents the color of the reference atlas for that structure. The two columns to the right determine the type of data displayed in the Image Viewer. “A” represents atlas structure and when checked, will show a visual representation of that structure in the Image Viewer. “D” represents gene expression and when checked, will show gene expression in that structural domain.
The default organization for the Structure Ontology is the Hierarchical View, but if you are unfamiliar with the ontology, you can click on the Alphabetical View to see the structure list in alphabetical order.
The Bookmarks tab is a space where you can create and save favorite views of the brain. Several default views are already saved that will rotate the brain back into common viewing frames.

This section displays the experiments you have selected and downloaded in this session. Right clicking on the gene name will bring up a menu where you can, 1) view the gene detail page (Get Info), 2) be taken to a zoomed in image from this experiment (View Images), 3) copy meta information to the clipboard, such as symbol, name, Entrez ID, image-series ID (Copy Info), 4) activate a Correlation search by finding experiments with similar expression profiles (Find Similar) or 5) close the experiment and remove it from the list and the 3-D view (Close).

To search for genes within the Brain Explorer application, go to the Search box located above the ontology panel and type in the gene symbol or part of a gene name.
The list of results shows gene name, gene symbol along with a 3-D summary thumbnail of the expression for each experiment matching the search. The expression thumbnail represents a maximum expression projection rendering: the denser the expression in a region the more “solid” the appearance. Reference atlas colors are additionally layered on top.
To load an experiment for viewing, click on the “Download” button under the gene name.
You can show opaque three dimensional structures of the brain by “showing” or “hiding” structures from this menu. The “Transparent” function allows you to see transparent views of the structures to view the anatomical relationships between them.
Selecting the sagittal, coronal or horizontal sections (or clicking on one of the section image buttons in the toolbar) will superimpose a single plane of the reference images (Nissl or Feulgen-HP) from each brain on your image space. These planes can be moved once the selection tool mode button in the toolbar is selected. Selecting “Show Annotation on Section” from this menu will color the reference images according to the brain structure ontology.
When you have a gene selected, the Data menu allows you to show all expression, hide all expression (for instance to then select a single structure) or toggle expression (for instance, unselect your region of interest then toggle to see expression in only that region).
You can also show or remove threshold controls and choose the visual representation of your data from this menu. There are several options under “Raw” colors:
To be taken to the experimental detail page, select “Get Info”. To see a high resolution image view of this experiment, choose “View Images”. These functions are also available by right-clicking on the gene name in the Gene List.
Choose “Find Similar” to find similar genes to the selected experiment. This uses the same Correlation Search functionality as in the web application.
When this function is selected, either by toggling the cutting tools button in the toolbar or selecting “Clipping Planes” from the View drop down menu, you can make coronal, sagittal or horizontal cuts in your view of the brain and related data. To cut in a particular plane, make sure the cursor is in selection tool mode, and then click and drag on the plane you are interested in clipping.
If you are using a desktop computer, you should obtain drivers from the video card manufacturer. First, identify the video card. Go the Start menu and open the Control Panel. Open the Display control panel and go to the Settings tab. Click the Advanced button and go to the Adapter tab. Your video card vendor and model name will be displayed at the top of the window under Adapter Type. Please go to the manufacturer’s web site, locate the driver download, and follow the instructions on the website or included with the downloaded file.
If you are using a laptop computer, you will need to go to your laptop manufacturer’s web site to locate the latest video drivers.
You can also activate an alternate drawing mode in Brain Explorer. Go to the View menu and select Options. Check the Draw faster but at lower quality button and uncheck the Synchronize drawing with the monitor’s vertical refresh button. Set the Multisample setting to Off.
If you are using multiple video cards from different vendors, the 3-D display may not work correctly on all attached monitors.
Use the Add/Remove Programs control panel or the uninstall link in the Brain Explorer folder in the Start menu. Additional data that are not automatically uninstalled are located at the following locations:
Windows XP
Atlas data: C:\Documents and Settings\userid\Local Settings\Application Data\Allen Institute\Brain Explorer 2
User settings: C:\Documents and Settings\userid\Application Data\Allen Institute\Brain Explorer 2
Windows Vista and Windows 7
Atlas data: C:\Users\userid\AppData\Local\Allen Institute\Brain Explorer 2
User settings: C:\Users\userid\AppData\Roaming\Allen Institute\Brain Explorer 2
If you use a proxy server, the Brain Explorer application will use the proxy settings from the Internet Options control panel in the Windows Start menu. Please refer to the Windows documentation for help on proxy settings.
Drag the Brain Explorer 2 icon to the trash. The Brain Explorer application generates the following files, which can also be dragged to the trash.
If the Brain Explorer application is not running smoothly, first try to free up as much memory as possible by quitting all other open applications. You can also activate an alternate drawing mode. Go to the Brain Explorer 2 menu and select Preferences. Check the Draw faster but at lower quality button and uncheck the Synchronize drawing with the monitor’s vertical refresh button. Set Multisampling to Off.
Learn about API For Mouse Brain Atlas with comprehensive guides and examples from Allen Institute for Brain Science.
The Allen Mouse Brain Atlas provides genome-wide in situ hybridization (ISH) image data for approximately 20,000 genes in adult mice. Each data set is processed through an informatics analysis pipeline to obtain spatially mapped quantified expression information.
From the API, you can:
This document provides a brief overview of the data, database organization and example queries. API database object names are in camel case. See the main API documentation for more information on data models and query syntax.
Experimental data from this atlas is associated with the “Mouse Brain” Product.
Multiple genes were assayed using each Specimen. Typically, the sectioning scheme divided each brain into eight interleaving SectionDataSets with 200 µm sampling density (= 8 x 25 µm thickness).
Each gene was assayed with at least one sagittal SectionDataSet. A subset of genes also has a coronal SectionDataSet and/or replicate experiments. A sagittal SectionDataSet spans the left hemisphere starting with the most lateral section located at where the hippocampus starts to appear to just past the midline yielding ~20 SectionImages at 200 µm sampling density. A coronal SectionDataSet spans both hemispheres starting with the most posterior section showing the cerebellum and hindbrain to the most anterior section showing the olfactory bulb, yielding ~60 SectionImages at 200 µm sampling density. The left side of a coronal SectionImage corresponds to the left hemisphere.
A manual QC protocol defines the criteria for failing experiments due to production issues, discarding damaged SectionImages, verifying and adjusting the tissue bounding boxes, as well as for identifying “dark” artifacts such as bubbles and tears.
From the API, detailed information about Genes, Probes, SectionDataSets and SectionImages can be obtained using RMA queries.
Examples
From the above query, gene Pdyn has one sagittal SectionDataSet (id=69782969) and one coronal SectionDataSet (id=71717084). In the web application, images from the experiment are visualized in an experiment detail page. All displayed information, images and structural expression values are also available through the API.
See the image download page to learn how to download images at different resolutions and regions of interest.

The informatics data processing pipeline produces results that enable the navigation, analysis and visualization. The pipeline consists of the following components:
The output of the pipeline is quantified expression values at a grid voxel level and at a structure level according to the integrated reference atlas ontology. The grid level data are used downstream to provide a differential and correlative gene search service and to support visualization of spatial relationships. See the informatics processing whitepaper for more details.
The backbone of the automated pipeline is an annotated 3-D reference space based on the same Specimen used for the coronal plates of the integrated reference atlas. A brain volume was reconstructed from the SectionImages using a combination of high frequency section-to-section histology registration with low-frequency histology to (ex-cranio) MRI registration. This first-stage reconstructed volume was then aligned with a sagittally sectioned Specimen. Once a straight mid-sagittal plane was achieved, a synthetic symmetric space was created by reflecting one hemisphere to the other side of the volume.
Over 800 Structures were extracted from the 2-D coronal reference atlas plates and interpolated to create symmetric 3-D annotations. Structures in the reference atlas are arranged in a hierarchical organization. Each structure has one parent and denotes a “part-of” relationship. Structures are assigned a color to visually emphasize their hierarchical positions in the brain.
In the May 2015 data release, we introduced a next generation common coordinate framework (CCF v3) based on a population average to support the integration of new mouse brain datasets in the Allen Brain Atlas Data Portal. See the Allen Mouse Common Coordinate Framework whitepaper for detailed construction information.
The Nissl volume and 3-D annotation from the Allen Reference Atlas were deformably registered to the new common coordinate framework to support potential cross-modality analysis of gene expression with new data modalities as they become available in the Data Portal.

See the atlas drawings and ontologies page for more information.
All coronal data is registered to ReferenceSpace id = 9. All sagittal data is registered to ReferenceSpace id = 10.
ReferenceSpace id = 9 is in PIR orientation (+x = posterior, +y = inferior, +z = right). ReferenceSpace id = 10 is identical to ReferenceSpace id = 9. The reason for the two spaces is to allow left hemisphere sagittal data to correspond to the right hemisphere coronal reference atlas. This is implemented as a z-axis flip transform between the two reference spaces for the purposes of image synchronization (see below).

NOTE: 3-D annotation volumes were updated in the May 2015 release to reflect the introduction of the next generation of the Allen Mouse Common Coordinate Framework (CCFv3). Annotation volumes from the October 2014 release (mapped to CCFv2) can be access through our data download server (see instructions).
Three volumetric data files are available for download:
All volumetric data is stored in an uncompressed format with a simple text header file in MetaImage format. The raw numerical data is stored as a 1-D array as shown in the figure below.

Example Matlab code snippet to read in the 25µm atlas and annotation volume:
% Download and unzip the atlasVolume and annotation zip files
% 25 micron volume size
size = [528 320 456];
% VOL = 3-D matrix of atlas Nissl volume
fid = fopen('atlasVolume/atlasVolume.raw', 'r', 'l' );
VOL = fread( fid, prod(size), 'uint8' );
fclose( fid );
VOL = reshape(VOL,size);
% ANO = 3-D matrix of annotation labels
fid = fopen('annotation.raw', 'r', 'l' );
ANO = fread( fid, prod(size), 'uint32' );
fclose( fid );
ANO = reshape(ANO,size);
% Display one coronal section
figure;imagesc(squeeze(VOL(264,:,:)));colormap(gray);
figure;imagesc(squeeze(ANO(264,:,:)));colormap(lines);
% Display one sagittal section
figure;imagesc(squeeze(ANO(:,:,220)));colormap(lines);
figure;imagesc(squeeze(VOL(:,:,220)));colormap(gray);
Example Matlab code snippet to read in the 200µm atlas and annotation volume:
% Download and unzip the gridAnnotation zip files
% 200 micron volume size
sizeGrid = [67 41 58];
% ANOGD = 3-D matrix of grid-level annotation labels
fid = fopen( 'gridAnnotation.raw', 'r', 'l' );
ANOGD = fread( fid, prod(sizeGrid), 'uint32' );
fclose( fid );
ANOGD = reshape(ANOGD,sizeGrid);
% Display one coronal and one sagittal section
figure;imagesc(squeeze(ANOGD(34,:,:)));colormap(lines);
figure;imagesc(squeeze(ANOGD(:,:,28)));colormap(lines);
The aim of image alignment is to establish a mapping from each SectionImage to the 3-D reference space. The module reconstructs a 3-D Specimen volume from its constituent SectionImages and registers the volume to the 3-D reference model by maximizing image correlation.
Once registration is achieved, information from the 3-D reference model can be transferred to the reconstructed Specimen and vice versa. The resulting transform information is stored in the database. Each SectionImage has an Alignment2d object that represents the 2-D affine transform between an image pixel position and a location in the Specimen volume. Each SectionDataSet has an Alignment3d object that represents the 3-D affine transform between a location in the Specimen volume and a point in the 3-D reference model. Spatial correspondence between any two SectionDataSets from different Specimens can be established by composing these transforms.
For convenience, a set of “Image Sync” API methods is available to find corresponding position between SectionDataSets, the 3-D reference model and structures. Note that all locations on SectionImages are reported in pixel coordinates and all locations in 3-D ReferenceSpaces are reported in microns. These methods are used by the Web application to provide the image synchronization feature in the multiple image viewer (see Figure).
Examples:

For every ISH SectionImage, a grayscale mask is generated that identifies pixels corresponding to gene expression. The detection algorithm is based on adaptive thresholding and mathematical morphology.
The expression mask image is the same size and pixel resolution as the primary ISH image and can be downloaded through the image download service.

For each SectionDataSet, the Gridding module creates a low resolution 3-D summary of the gene expression and projects the data to the common coordinate space of the 3-D reference model. Casting all data into a canonical space allows for easy cross-comparison of gene expression data from every Product. The expression data grids can also be viewed directly as 3-D volumes or used for analysis (i.e. differential and correlative searches).
Each image in a SectionDataSet is divided into a 200 x 200 µm grid. Pixel-based gene expression statistics are computed using information from the primary ISH and the expression mask:
Each per-image 2-D expression grid is smoothed and rotated to form a 3-D grid. Z-direction smoothing is applied to the 3-D grid which is then transformed into the standard reference space.
Grid data can be downloaded for each SectionDataSet using the 3-D Expression Grid Data Service. The service returns a zip file containing the volumetric data for expression density, intensity and/or energy in an uncompressed format with a simple text header file in MetaImage format. Structural annotation for each grid voxel can be obtained via the ReferenceSpace gridAnnotation volume file.
Note: while the reference space spans both hemispheres, sagittal SectionDataSets only span the left hemisphere. Voxels with no data are assigned a value of “-1”.
Examples:
NOTE: Grid data were updated in the May 2015 release to reflect the introduction of the next generation of the Allen Mouse Common Coordinate Framework (CCFv3). Grid data from the October 2014 release (mapped to CCFv2) can be access through our data download server (see instructions).
The expression data grid can be viewed in the Brain Explorer® 2 desktop program. Each grid voxel is rendered as a colorized sphere where the diameter represents expression energy and the color encoding expression intensity. In addition, a preview of the expression data grid is shown on the Web application as a series of maximum density projection images.
Example Matlab code snippet to read in the 200 µm energy grid volume:
% Download and unzip the energy grid file for Pdyn SectionDataSet
% 200 micron volume size
sizeGrid = [67 41 58];
% ENERGY = 3-D matrix of expression energy grid volume
fid = fopen('Pdyn_P56_coronal_71717084/energy.raw', 'r', 'l' );
ENERGY = fread( fid, prod(sizeGrid), 'float' );
fclose( fid );
ENERGY = reshape(ENERGY,sizeGrid);
% Display one coronal and one sagittal section
figure;imagesc(squeeze(ENERGY(34,:,:)));colormap(gray);
figure;imagesc(squeeze(ENERGY(:,:,28)));colormap(gray);
Expression statistics can be computed for each structure delineated in the reference atlas by combining/unionizing grid voxels with the same 3-D structural label. While the reference atlas is typically annotated at the lowest level of the tree, statistics at upper level structures can be obtained by combining measurements of the hierarchical children. This process produces expression density, intensity and energy measurements for each experiment and structures of interest.
Expression statistics are encapsulated as a StructureUnionize object associated with one Structure and one SectionDataSet and can be downloaded via RMA.
Example:
StructureUnionize data is used in the web application to display expression summary bar graphs for a set of coarse structures.
A expression grid search service has been implemented to allow users to instantly search over the ~25,000 SectionDataSets to find genes with specific expression patterns:
The expression grid search service is available through both the Web application and API.
To perform a Differential Search, a user specifies a set of target structures and a set of contrast structures. In the service, the set of voxels belonging to any of the target structures forms the target voxel set, and voxels belonging to any of the contrast structures form the contrast voxel set. For each SectionDataSet a fold change is computed as the ratio of average expression energy in the target voxel set over the average expression energy in the contrast voxel set. The return list is sorted in descending order by fold-change.
Example: Differential search for genes with higher expression in the thalamus than the isocortex
See the connected service page for definitions of service::mouse_differential parameters.

To perform a Correlation search, a user selects a seed SectionDataSet and a domain over which the similarity comparison is to be made. All voxels belonging to any of the domain structures form the domain voxel set. Pearson’s correlation coefficient is computed between the domain voxel set from the seed SectionDataSet and every other SectionDataSet in the Product. The return list is sorted by descending correlation coefficient.
Example: Correlation search for genes with similar expression to the sagittal Pdyn SectionDataSet
See the connected service page for definitions of service::mouse_correlation parameters.

In order to perform these computations quickly over the entire data set, a subset of voxels are loaded in memory. The full expression grid is 67x41x58=159,326 voxels spanning both hemispheres and includes background voxels. To load all voxels for all image series into memory would require 14GB of RAM. To reduce memory requirements and increase the efficiency of calculations, voxels spanning over 80% of all experiments were identified. Only these ~26,000 voxels were then used in the ‘‘full’’ search service requiring 4 GB of RAM and partially spanning one hemisphere.
To take advantage the data on both hemispheres in coronal data, a second ‘‘coronal only’’ search service is also available as an option. The coronal service spans both hemispheres covering 58,387 voxels and searches over the ~4,000 coronal image series.
It should be noted that this on-the-fly search service is derived from a fully automated processing pipeline. False positive and false negative results can occur due to artifacts on the tissue section or slide and/or algorithmic inaccuracies. Users should confirm results with visual inspection of the ISH images.
Learn about In Situ Hybridization ISH Data with comprehensive guides and examples from Allen Institute for Brain Science.
The Allen Mouse Brain Atlas offers the following ways for you to find gene expression data:

To search for a specific gene by name, symbol, NCBI accession number, or Entrez gene ID, type your query into the text box, making sure the “Gene Search” radio button is selected. As you type, genes that match your search string will be suggested to you. Select an item from the list and click the “Search” button. The results are displayed in a list that shows all genes with expression data that match your query.
Tips for searching:
The following special operators can be used to build queries:
The Differential Search option is ideal to search for gene expression data when the brain structure or area is known but little is known about genes that may be expressed in that area. To find genes with enhanced expression in one or more brain regions in contrast to one or more different regions, first select the “Differential Search” radio button. Enter the target structure(s) in the top search box labeled “Target Structure(s)” with a comma separating each structure. You can then enter “Grey” (for grey matter) or some smaller region as your contrast region in the “Contrast Structure(s)” search box, then click on the Search button.
The results are displayed as a list of genes with enhanced expression in the regions that match your query.
Differential search is an on-the-fly search service. Calculations over all ~25 000 experiments are computed as a fold change using expression energy data from one hemisphere. To restrict the search to coronal experiments (~4 000) which used data from both hemispheres, select the “Coronal data only” check box.
Since this search service is derived from a fully automated processing pipeline, false positive and false negative results can occur due to artifacts on the tissue section or slide and/or algorithmic inaccuracies. Users should confirm results with visual inspection of the ISH images. The “Expression threshold ” slider may be useful to reduce false positive results due to dark spot artifacts. This threshold restricts the list of returned results by excluding any experiment where the expression energy of the target structures is less than threshold.
A differential search with manually curated results was generated for 75 small structures in the brain listing the top 50 genes with specific and enhanced gene expression. To use the Fine Structure search, select the “Fine Structure Annotation” radio button, then select a brain region from the drop down menu to return this list.
The “Human Differential Search” function enables side by side viewing and comparison of differential search across the mouse ISH and human microarray datasets. Select the “Human Differential Search” radio button. To find genes with higher expression in one structure compared to another structure, select a target brain structure in the top drop-down box and a contrast region in the bottom drop-down box and click on the Search button.
The return list is generated by first executing a differential search query in the mouse ISH dataset. Experiments for each gene are grouped together and ordered by maximum fold-change. For each gene in the mouse ISH return list, associated experiments in the human microarray dataset are identified; fold-change values are computed and displayed. Note that NCBI HomoloGene data is used to link genes across organisms. Click on the dataset column heading to toggle the primary dataset selection.

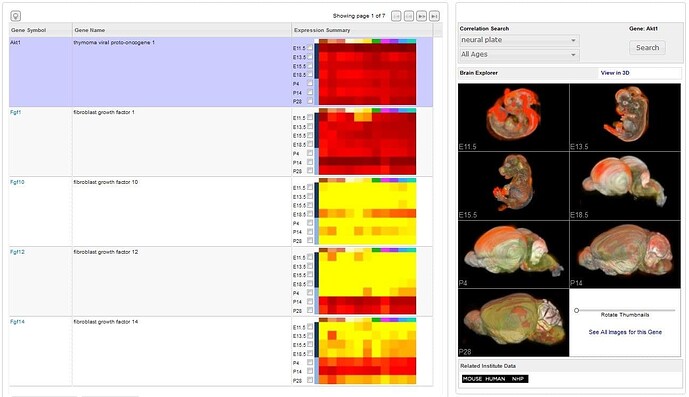

For each experiment, a gestalt visualization of the brain wide expression pattern is also provided. The type of visualization depends on the dataset:
For mouse brain data, expression is visualized as rotating 3D thumbnails. Each view is generated by maximum density projection where denser expression area appears more solid and obscures areas of lower density. Each cube is color-coded by average expression intensity ranging from blue (low intensity) through green to red (high intensity). Move slider bar in the header to rotate thumbnail.
For human brain data, microarray data is visualized as a heatmap where each column represents a tissue sample in ontological order. Heatmap color represents the z-score over a probe ranging from green (z-score of -3 and below) through black to red (z-score of +3 and above). Hover over any position in the heatmap to obtain the associated tissue sample structural annotation.

In using gene expression databases, a “search by example” feature is also highly desirable as genes with similar expression patterns may be related in function. The Correlative Search utility will accomplish this function. This search by example facility is also available in the Allen Human Brain Atlas, Allen Developing Mouse Brain Atlas and the BrainSpan atlas of the developing human brain.
Once you have identified a gene of interest, to find other genes with spatial expression profiles similar to your gene of interest, first select your experiment by clicking on the gene name in the search results list. You will see that the experiment loads in the panel to the right hand side of the results list. Select the brain structure(s) in which you would like to see a similar expression pattern from the drop-down menu. You can search all the data or just the coronal data, by clicking the “Search Coronal Data Only” box, and click “Search”. This action will return experiments with a similar expression profile to brain region(s) in which you are interested.


Searches will return a list of experiments based on the input search criteria. Each row includes the following information.
Select the experiments to view in greater detail by clicking on the checkboxes next to your experiments of interest. Experiments will be saved in your cache until you select the “Clear Selections” button at the bottom of the page. After selecting one or more experiments, click the “View Selections” button.
You can look for genes with a similar expression profile to your gene of interest by using the Correlative Search option: once a gene is selected, choose a structure from the drop-down menu and click “Search”. You can limit your results to only the data collected in the coronal plane by selecting the “Coronal data only” radio button.
The experiment image viewer displays images for each selected experiment in a Zoom and Pan viewer. This view makes it easy to compare experiments with each other and with the Reference Atlas.
Multiple image series can be opened on the same page to enable side-by-side comparisons. Arrange the experiments by dragging a viewer by the title bar and dropping in a new location. Add a reference atlas by selecting one in the “Atlases” drop-down menu in the upper-right hand corner of the window.
If you are viewing more than one experiment, open the configuration options to change the number of columns displayed in the window. The configuration options are accessible by clicking on the button with a “gear” icon to the right of the “Atlases” menu.
The gene symbol is displayed in the title bar along with the Allen Institute image series ID. Additional details are displayed across the top of the viewing area, including the image index, tissue index, and tissue location.
Thumbnails for the entire image series are displayed across the bottom of the viewer in section order. Click a thumbnail to select it for viewing, or use the keyboard to navigate through the set. The current selection is outlined in black.
When the experiment is selected by clicking on the link, a summary of the experimental detail is returned. The data includes 1) an interactive 3-dimensional representation of gene expression, 2) a histogram of the expression energy in 12 different structures, 3) probe and gene metadata and 4) an interactive image viewer that displays the images in the experiment.
Hovering your mouse over the histogram will sync the image in the single image viewer with the section corresponding to that structure and expression.


The Zoom and Pan (ZAP) Image Viewer is a powerful tool to navigate and view the images in an experiment. The main part of the viewer is an interactive window where an image can be repositioned by dragging with a mouse. Use the scroll wheel or the keyboard to zoom in or out.
Select other images in the experiment by clicking on a thumbnail image below the main viewer.
Drag the scale bar with your mouse to the desired location. Click on the text with your mouse to toggle between horizontal and vertical.
Use the toolbar to take actions on the image that currently has focus. Toolbar controls include:
Use the keyboard to navigate through the image series and synchronize the viewers on the page. Keyboard commands include:
You can also use the arrow keys to pan the current image.
The expression mask image display highlights those cells that have the highest probability of gene expression using a heat map color scale (from low/blue to high/red).

The Expression Energy was calculated as follows: Within a given area A (voxel or structure), expression energy = (sum of intensity of expressing pixels in A) / (sum of all pixels in A)
The image viewer enables you to view a high resolution image in its own re-sizable window. It is possible to open multiple images by opening multiple windows.

Ways to interact with an image include:
Learn about Anatomic Gene Expression Atlas AGEA with comprehensive guides and examples from Allen Institute for Brain Science.
The Allen Institute has built a data-driven three-dimensional atlas of the adult C57Bl/6J mouse brain based on the ISH gene expression images of the Allen Mouse Brain Atlas. Only the coronal gene expression data were used to construct this application. The AGEA feature (which stands for Anatomic Gene Expression Atlas) characterizes the multi-scale spatial relationship in the mouse brain as derived from coronal gene expression data without a prior knowledge of classical anatomy. Using the AGEA feature of the Allen Mouse Brain Atlas, you can:
To launch this feature, click on the AGEA tab from the Allen Mouse Brain Atlas and you will see the following image.

The upper panel of images are orthogonal views of a 3-D Nissl reference atlas volume. The reference space was divided into 200 µm volumes, or voxels. The cross hairs in the top panel of images select for a seed voxel from which to compare to gene expression profiles to all other voxels in the brain. For more detailed information on how AGEA was constructed please see the AGEA user guide or Ng L, et al.(2009) An anatomic gene expression atlas of the adult mouse brain. Nature Neuroscience 12(3): 356-362.
This section describes the controls for the Correlation and Cluster modes of AGEA.

A. Seed Selector panel: Use this area to select the seed voxel as marked by the red crosshairs. Either click or click and drag to navigate to a different correlation map.
B. Map panel: This area displays the three orthogonal views of the currently selected correlation map in coronal, sagittal and horizontal planes. The red crosshair marks the currently selected voxel. Either click or click and drag to move to a new 3-D location. Note that this volume can be navigated in 3-D for any selected voxel location from A.
In Correlation mode, the lower panel shows orthogonal views of the selected spatial relationship map. The correlation values in the bottom figures can be interpreted as a measure of average co-expression between two voxels. The higher the correlation value between voxels, the more common it is for genes from the seed voxel to be co-expressed. Higher correlation between two voxels indicates more spatial correlation of expression and thus potentially higher possibility that the spatial regions spanned by the voxels are anatomically related. This may indicate that the voxels compared share common cell types or represent a coherent functional map. The correlation map can also be used to locate coexpressing areas in other brain regions. In the above figure, the map indicates that there is higher co-expression in thalamic structures than in other regions of the brain.
When a seed voxel is selected using the crosshairs in the images from the top panel, you can find correlations between the seed voxel and other voxels in the brain by selecting a distinct voxel in the lower panel using the crosshairs in the images from the lower panel. The correlation between the regions will be displayed below the lower panel (9).
The gene finder search facility is among the most powerful aspects of AGEA’s functionality. It enables users to search an anatomic region of interest for genes within the Allen Mouse Brain Atlas coronal database that exhibit localized enrichment. Clicking the “Find Genes” button returns a list of genes selected by the crosshairs in the upper panel (A). Voxels in the yellow to red range (top third of the range) are considered the local region of interest (target domain) while all voxels above threshold cutoff (all non-dark blue voxels) forms the contrast domain region. These domains are used in the differential search to find the genes that exhibit localized enrichment.
Clicking the “Find Genes” button will return a list of experiments based on the input search criteria on a separate page. The AGEA correlation map as well as the seed location in PIR orientation (in µm) is illustrated at the top of the page.

Each row of the search results includes the following information.
You will have to visually inspect the dataset to ensure the signal that AGEA detected was real and not an artifact of the image collection.
Selecting Clusters mode switches the lower panels to view a data-driven hierarchical binary tree spatial organization of the brain computed from the AGEA correlation maps. To construct the decomposition, all 61,053 voxels were assigned to the root node of the tree. As we descend the tree, a node is bifurcated into two nodes to achieve maximal dissimilarity between two groups of voxels based on correlation values. The final bi-tree consists of 122,105 nodes with a maximum depth of 54 levels and 61,053 leaf nodes (one for each voxel in the brain). Effective visualization of this large data structure is via an easy-to-use Tree Depth slider mechanism to navigate the bi-tree, providing 3-D context and visualizing the multi-scale partitioning.

In the above example, when the field CA3 is selected from the top panel you can see the relationship of this region to the rest of the hippocampal formation at a tree depth of 10.
The voxels of a node are visualized with a systematic color coding scheme. All voxels of a node are assigned a color based on the ‘jet’ color scheme where the leaf node with low-order voxels are assigned shades of blue. The colors then run through green, yellow, orange, and finally, higher-order voxels are assigned shades of red.
